| Place of Origin: | China |
| ब्रांड नाम: | SURPLUS LIGHTING |
| प्रमाणन: | TUV CB CE RoHS SAA FCC UKCA ENEC |
| Model Number: | SL-HB100A6190xxP |
| Minimum Order Quantity: | 1 unit |
|---|---|
| मूल्य: | 1-100US$/unit |
| Packaging Details: | 1 unit/carton |
| Delivery Time: | 10-18 working days |
| Payment Terms: | T/T, L/C at sight, Western Union, Paypal |
| Supply Ability: | 2600 units per working day |
| Lumens: | 190lm/W | LED type: | Lumileds 2835 / Guangyou 3030 |
|---|---|---|---|
| Driver brand: | Philips Xitanium | Input Voltage: | AC100-277V |
| Warranty: | 5 years | Dimmable: | Yes |
| Power: | 100W | CCT: | 2700K-6500K |
| प्रमुखता देना: | IP65 LED Highbay Light,190lm/W LED Highbay Light,100W LED Highbay Light |
||

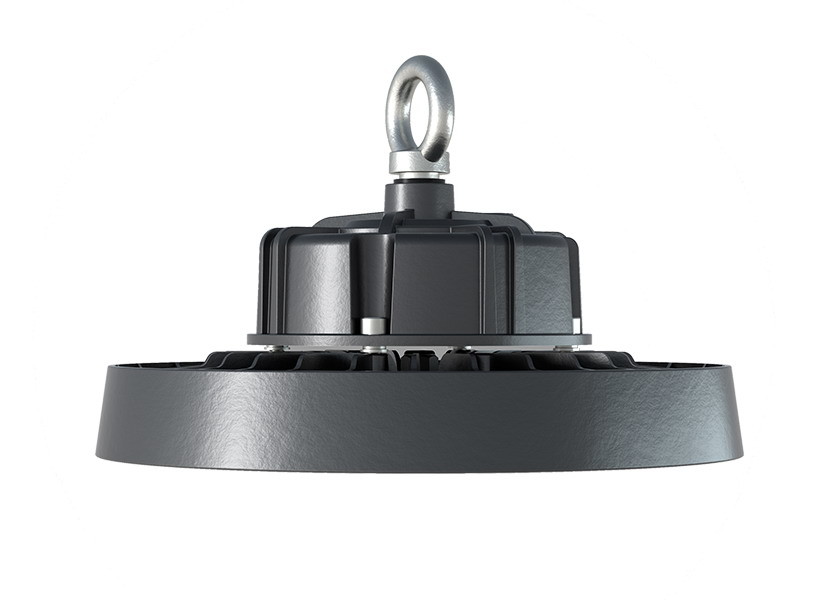

Aurora Gen6 Series 190lm/W 100W LED Highbay Light IP65 IK10 Highbay Lighting CB CE SAA UKCA RoHS Approved Warehouse Lighting
100W IP65 LED High Bay Light Specification:
| Product code | SL-HB100A6190xxP | SL-HB150A6190xxP | SL-HB200A6190xxP | SL-HB240A6190xxP |
| Power | 100W | 150W | 200W | 240W |
| Luminous efficacy | 170lm/W; 190lm/W | |||
| Input Voltage | AC100-277V | |||
| LED type | Lumileds SMD2835 / Guanggyou SMD3030 | |||
| Driver brand | Philips Xitanium / MOSO / SOSEN | |||
| LED Qty | 380pcs | 680pcs | 920pcs | 1020pcs |
| CRI | Ra>80 | |||
| Beam angle | 60°/ 90°/120 ° | |||
| Materials | ADC12, optical PC lens | |||
| Dimensions | Φ241x149mm | Φ294x164mm | Φ370x170mm | Φ370x170mm |
| Operating Tem. | -40~50°C | |||
| IP rating | IP65 | |||
| Net weight | 1.80KG | 2.00KG | 2.40KG | 3.40KG |
| Packing size | 31*31*14cm | 33*33*14cm | 38*38*14cm | 38*38*14cm |
| Life time | 108,000 hours | |||
| THD | <12% | |||
100W IP65 UFO LED High Bay Light Products Feature
* ADC12 heat sink, perfect heat dissipation
* Powered by LM80 approved Lumileds 2835 / Guanyou SMD3030 LED
* Powered by PHILIPS / MOSO / SOSEN driver
* Wide aluminum PCB design
* Available with anti-glare reflector
* Working temperature: -40°C ~+50°C
* Certificate: ENEC, CE, RoHS, SAA, FCC
* IP65 waterproof
